| Datasheet Downloads | |
|---|---|
FLP_DataSheet_Standard_Geotextiles.pdf |
|

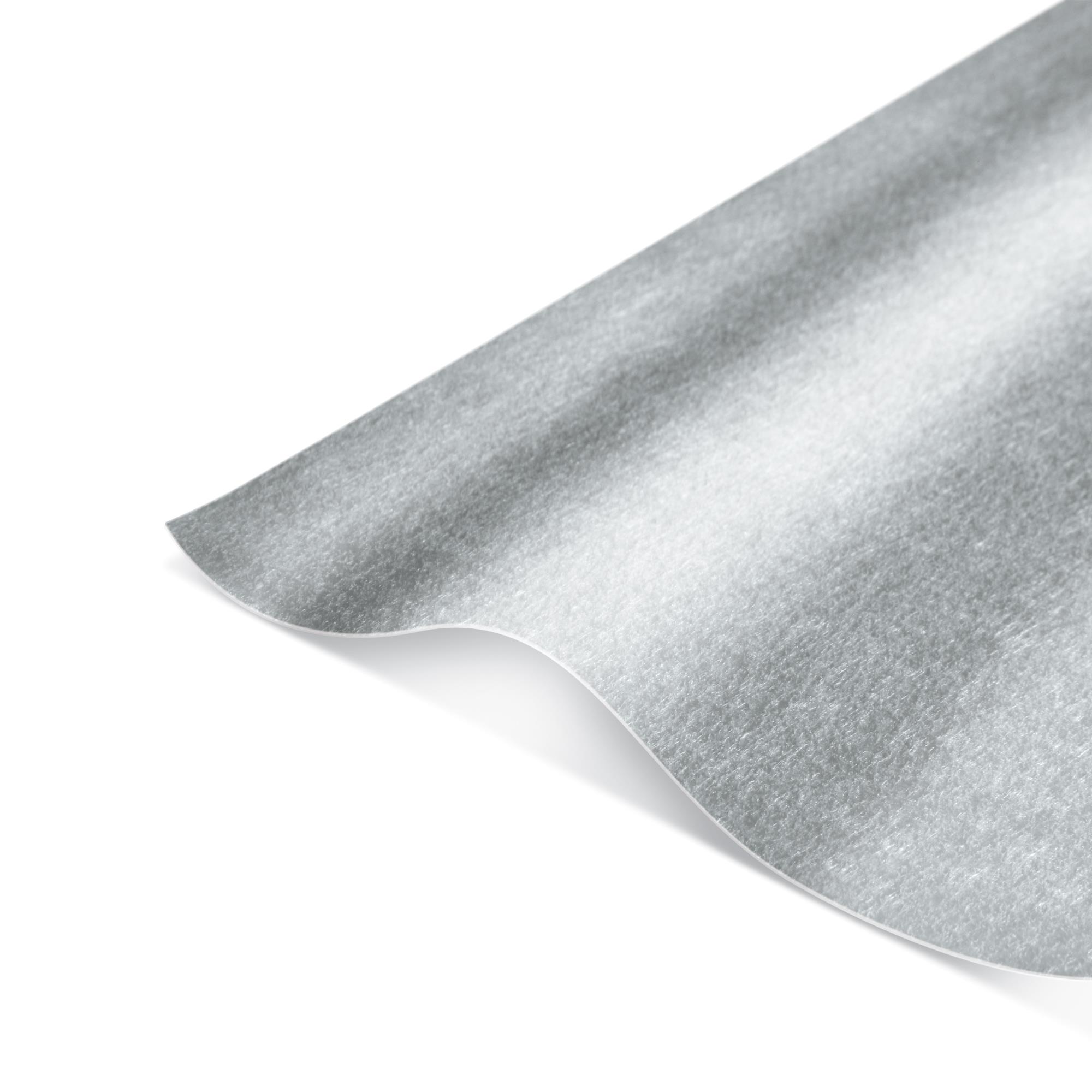

Terram 1000 Geotextile Fabric
Terram 1000 Robust and durable, Terram T1000 geotextile helps prevent the intermixing of solid particles between the layers of soil, yet still permits water to permeate. The tensile strength, high stiffness and permeability of Terram T1000 geotextiles make them ideal for material separation purposes within pavements
Terram 1000 Robust and durable, Terram T1000 geotextile helps prevent the intermixing of solid particles between the layers of soil, yet still permits water to permeate. The tensile strength, high stiffness and permeability of Terram 1000 geotextiles make them ideal for material separation purposes within pavements.
Applications
- Minimises the need for excavation and replacement of the original ground
- Reduces the loss of granular material into the subgrade

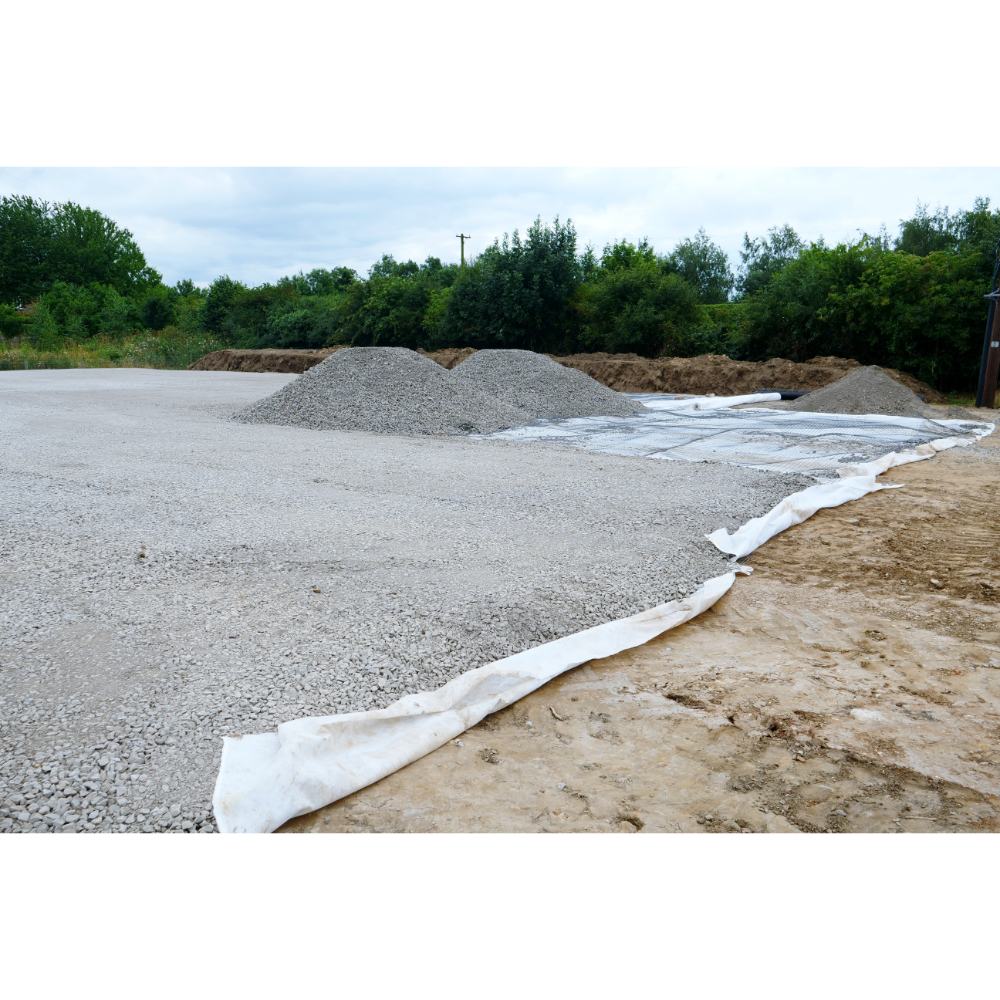

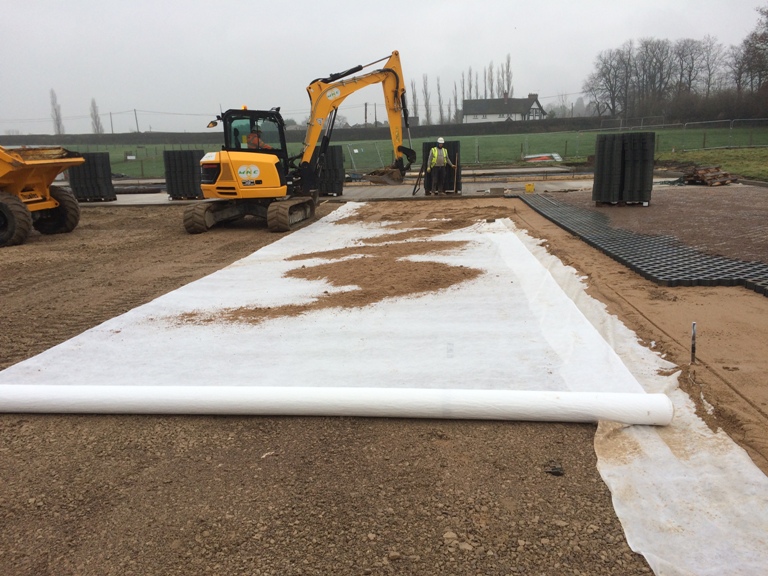

- Allows initial fill layers to be placed over particularly soft ground without construction vehicles becoming stuck
Terram 1000 Benefits
- Terram makes it easier to spread granular material over soft areas.
- Minimises the need for excavation and replacement of the original ground.
- Terram reduces the loss of granular material into the subgrade.
- Allows work to continue during bad weather.
- Allows more open gradings to be used for sub-base materials.
- Terram T1000 allows initial fill layers to be placed over particularly soft ground without construction vehicles becoming stuck.
|
Type |
Size |
Application |
|
Mini/Builder Pack |
4.5 x 11.1m |
Domestic |
|
Roll |
2.25 x 100m |
Commercial |
|
Roll |
4.5 x 100m |
Commercial |
|
|
Test Method |
Unit |
T1000 GT |
T1500 GT |
T2000 GT |
T3000 GT |
T4000 GT |
|
4. MECHANICAL PROPERTIES |
|||||||
|
Tensile Strength EN ISO 10319 |
kN/m |
8.0 (-0.8) |
12.5 (-1.25) |
14.5 (-1.45) |
18.0 (-1.8) |
22.0 (-2.2) |
|
|
Tensile Elongation |
% |
60 (±20) |
60 (±20) |
60 (±20) |
60 (±20) |
60 (±20) |
|
|
CBR Puncture Resistance EN ISO 12236 |
N |
1500 (-150) |
2250 (-225) |
2750 (-275) |
3250 (-325) |
4300 (-430) |
|
|
|
Cone Drop EN ISO 13433 |
mm |
38 (+6) |
32 (+6) |
26 (+5) |
24 (+4) |
22 (+4) |
|
5. HYDRAULIC PROPERTIES |
|||||||
|
Pore Size - Mean AOS EN ISO 12956 |
µm |
75 (±20) |
65 (±20) |
65 (±20) |
60 (±20) |
60 (±20) |
|
|
|
Permeability—(H50) EN ISO 11058 |
l/m2s |
90 (-27) |
65 (-20) |
55 (-17) |
50 (-15) |
30 (-9) |
