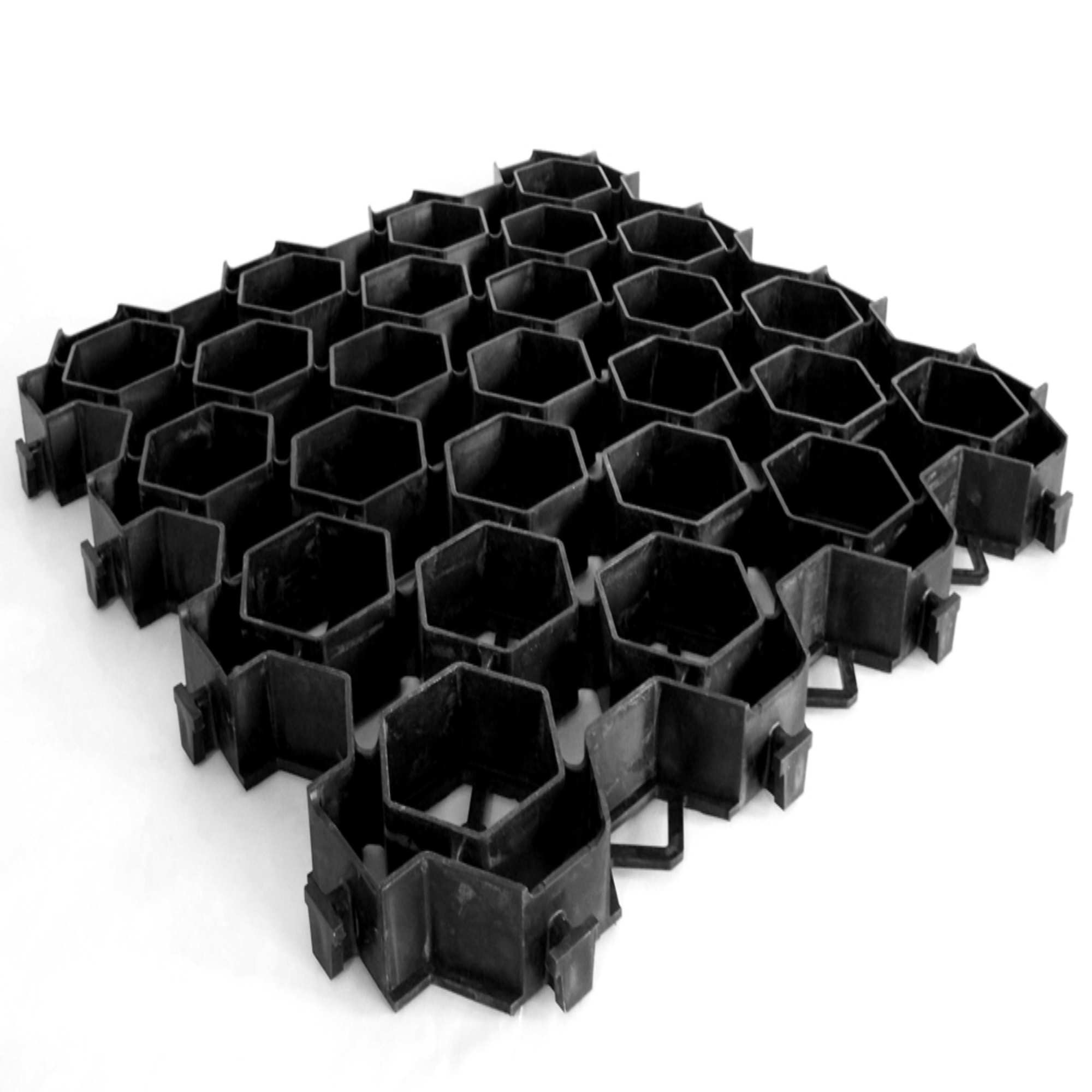

GRB Plus - Plastic Ground Reinforcement Paver
GRB is a tried and tested solution for ground protection, ground reinforcement and stabilisation paver system, GRB Plus is a plastic paver systems that has been specified on many major projects across the UK. It provides excellent strength and protection whilst permitting the free-flow of water, minimising drainage problems.
GRB is a tried and tested solution for ground protection, ground reinforcement and stabilisation paver system, GRB Plus is a plastic paver systems that has been specified on many major projects across the UK. It provides excellent strength and protection whilst permitting the free-flow of water, minimising drainage problems.
Features
- Manufactured from 100% recycled polymer
- Manufactured in the UK
- Supports vehicles up to 250 tonnes
- Minimal maintenance
- Unique locking system for a speedy installation
- Lightweight, easy to assemble
- No additional fixings or tools required
- Allows surface water to drain freely

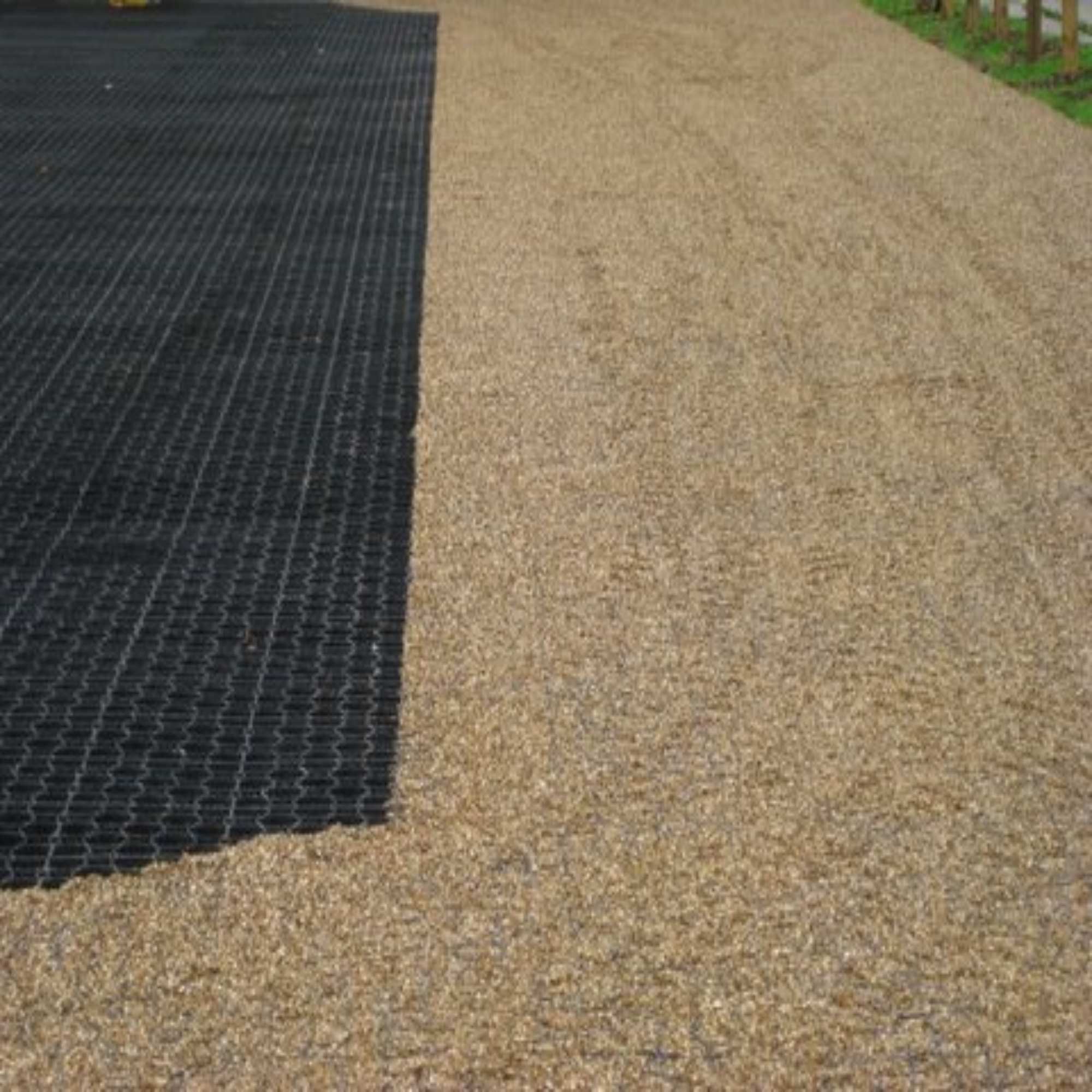

- Can be finished with grass, gravel and stone
GRB PLUS Plastic Pavers can be used in the following areas:
GRB Technical Spec
|
GRB Technical Spec Grid Area |
500 x 500 x 40mm |
|
Wall Thickness |
4mm |
|
Wall Depth |
40mm |
|
Weight/m2 |
4.56kg/m2 |
|
4 |
|
|
Number of units per m2 Load Capacity |
Up to 250 tonnes/m2 |
|
Axle Weight |
Up to 16 tonnes |
|
m2 per pallet |
56m2 |
|
Gross Weight per pallet |
260kg |
|
Material |
HDPE |
|
Temperature Stability |
-30 to +80°C |
|
Chemical Resistance |
Rocksalt, ammonia, acid rain, petroleum products, hydrocarbons |
|
Estimated Installation Time |
100m2 per person per hour (depending upon ground preparation) |
|
Base Specifications |
Minimum base recommended: 250mm for car parking, 450mm for heavier vehicles |
Sub base depths
Project Typical depth:
- Patios, Garden paths 100mm
- Driveways, public footpaths 150mm
- Heavy uses 250mm
- Highways 450mm +
GRB Plastic Grid Colours Available
- Black

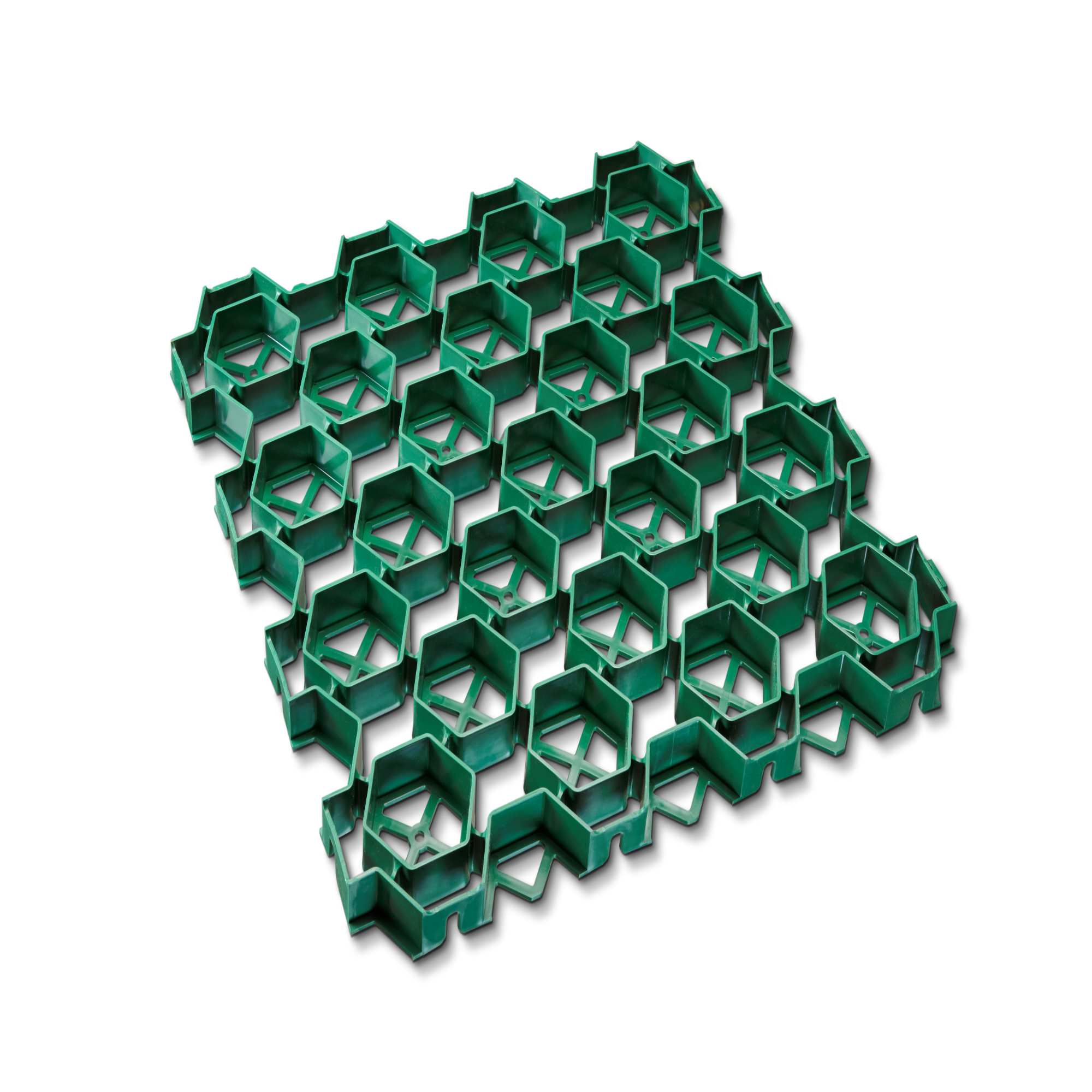

- Green - On request
